Description
70-100 Series
NPT Ball Valves

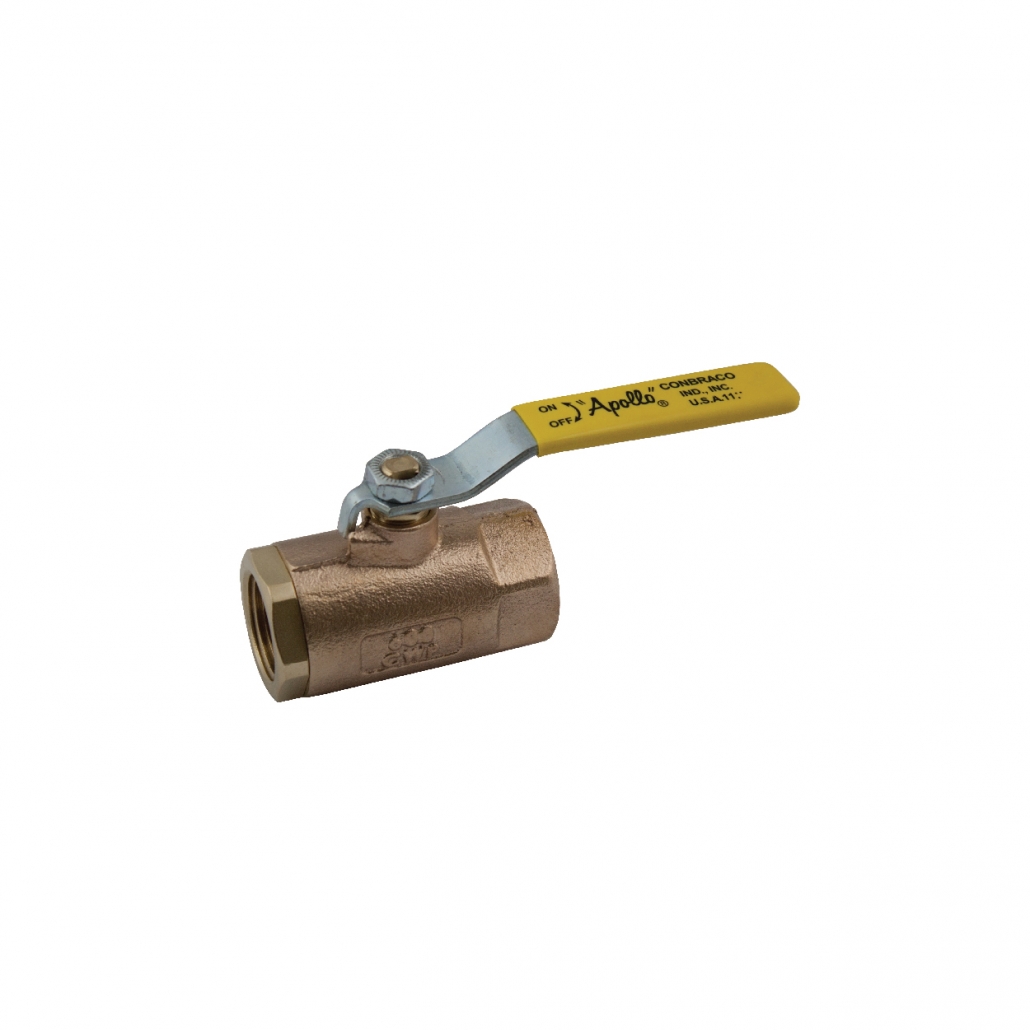

The Apollo® 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port* ball valve featuring female NPT connections. Cast and machined in Apollo’s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
FEATURES
•Premium Materials and Heavy Duty Construction•Adjustable Stem Packing Gland
•Blowout Proof Stem Design
•RPTFE Seats and MPTFE Stem Packing Rings•Chromium Plated Ball
•100% Factory Tested
•Wide Range of Options (see page 2)
•Manufactured in the USA – ARRA Compliant
PERFORMANCE RATING
•CWP: 600 psi (41.37 Bar)
•SWP: 150 psi (10.34 Bar)
•Maximum Temperature: 500°F
•Vacuum Service to 29 in. Hg
MODELS
•70-100 Series – Standard
•70-140 Series – 316 SS Ball & Stem
•70-190 Series- Pinned Retainer
•70LF Series- Lead Free Option
APPROVALS
•MSS SP-110 – Ball Valves Threaded, Socket-
Welding, Solder Joint, Grooved and Flared Ends•CRN: OC10908.5C
