Description

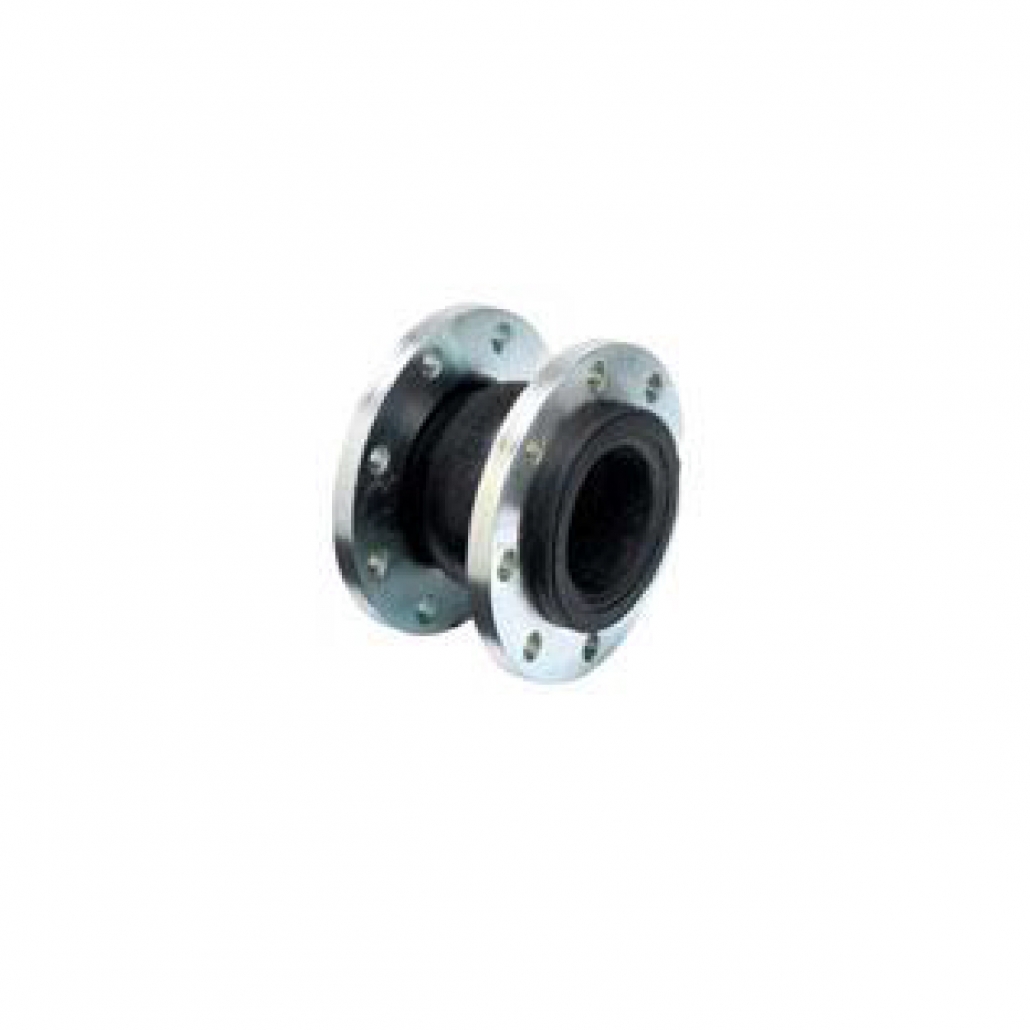

Model ‘ASM’ Flanged Single-Sphere Connector
Available in sizes 2″ to 20″ with class 150 floating flanged ends for maximum operating pressures as follows:
PMO: (Maximum Operating Pressure):
2″ to 4″: 180 psi @ 225 deg. F.
5″ to 10″: 135 psi @ 225 deg. F.
12″ to 14″: 90 psi @ 225 deg. F.
16″ to 20″: 45 psi @ 225 deg. F
Rubber connectors allow pressure to exert itself uniformly in all directions, thus reducing the force exerted on pipe lines and equipment.
Materials of Construction:
Flanges: Zinc Plated Carbon Steel
Wire: Steel Wire Strand
Elastomer: Neoprene
Reinforcement: Synthetic Fiber
Model ‘ATM’ Flanged Twin-Sphere Connector
Available in sizes 2″ to 20″ with class 150 floating flanged ends for maximum operating pressures as follows:
PMO: (Maximum Operating Pressure):
2″ to 4″: 180 psi @ 225 deg. F.
5″ to 10″: 135 psi @ 225 deg. F.
12″ to 14″: 90 psi @ 225 deg. F.
16″ to 20″: 45 psi @ 225 deg. F
Rubber connectors allow pressure to exert itself uniformly in all directions, thus reducing the force exerted on pipe lines and equipment.
Materials of Construction:
Flanges: Zinc Plated Carbon Steel
Wire: Carbon Steel Wire Strand
Elastomer: Neoprene
Reinforcement: Synthetic Fiber
