Description

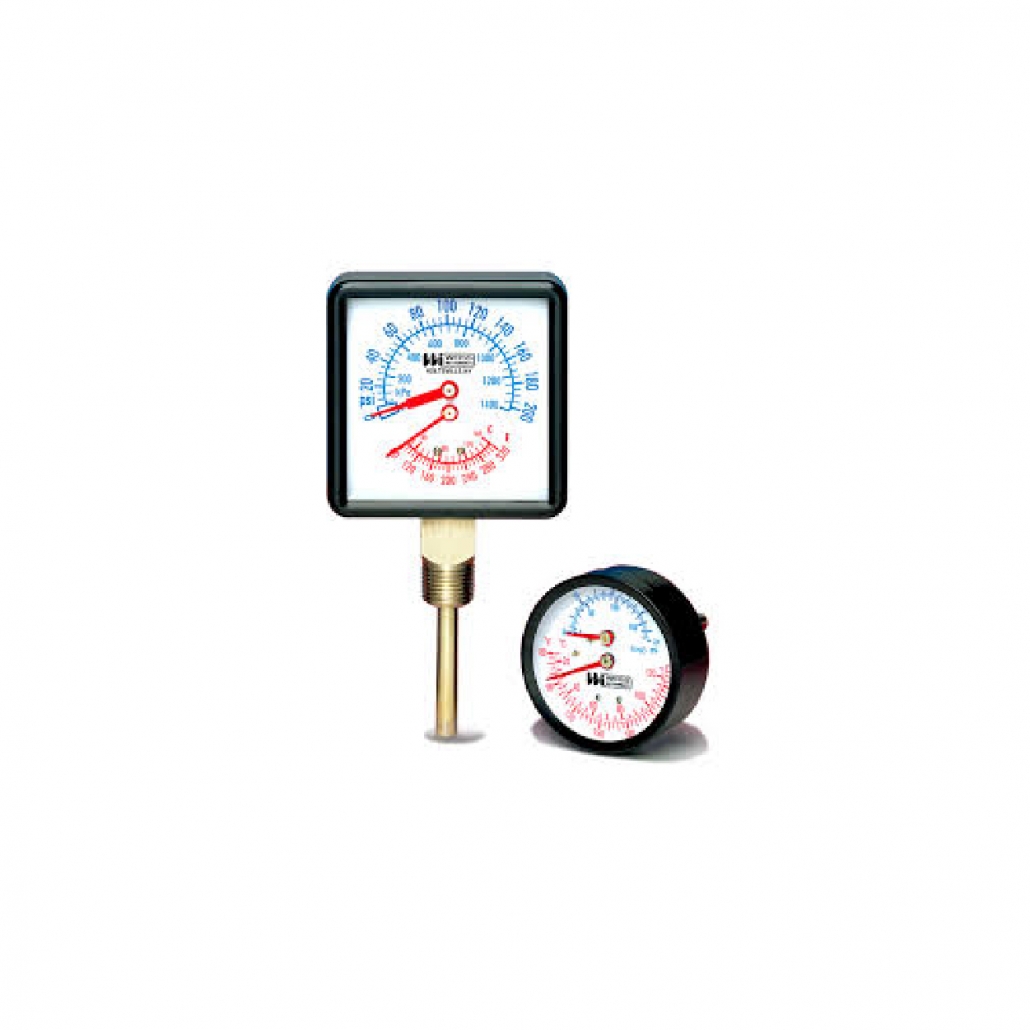

The Weiss TRI-O-METER is designed for use on all types of hot water heating systems. One instrument indicates water pressure, water temperature and system head in feet of water.
The TRI-O-METER is available in two dial sizes, a 3-1/2″ square dial with 1/2″ NPT in lower or rear connection. And a 2-1/2″ round dial with 1/4″ NPT rear connection. Bold markings and colors on a white dial ensure easy readability and a good looking addition to any installation
SPECIFICATIONS:
Dial Size: 2-1/2″ and 3-1/2″
Case: Black epoxy coated steel with glass window
Connection: Brass NPT fitting with brass sensor bulb
Pressure & Temperature Element: Phosphor Bronze
System Accuracy: Pressure /Altitude ± 2% of Span in middle half of range, ± 3 % of Span elsewhere. Temperature ± 3 % of Span over entire range
Ranges: Series C – 0-75psi & ft. of H2O, 60-260F&C
Series H – 0-200psi & kPa, 80-320F&C
