Description
77F-100 Series

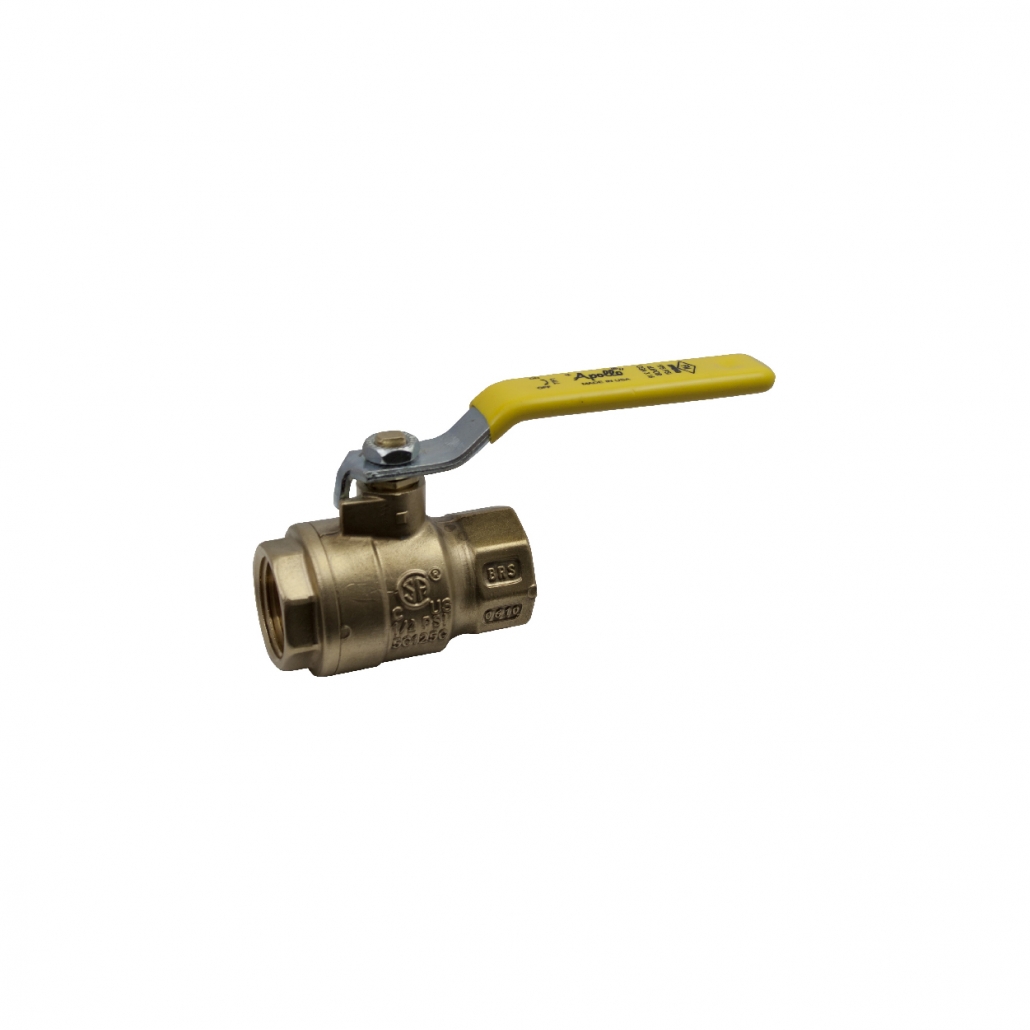

Full Port Threaded End Brass Ball Valve
DESCRIPTION
The Apollo 77F-100 Series is a full port forged brass ball valve suitable for a wide range of flow control applications including HVAC, fuel gas, fire protection,
irrigation etc. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals.
Proudly Made in the USA
FEATURES
• Heavy Pattern Forged Design
• Corrosion Resistant Materials
• Full-Port Flow
• Premium RPTFE Seats and Packing
• Adjustable Stem Packing
• Blowout-Proof Stem
• Silicone Free Assembly
• 100% Factory Tested
• Made in USA, ARRA Compliant
PERFORMANCE RATING
• Rating: 600 CWP (1/4” – 2”)
• Rating: 400 CWP (2-1/2” – 4”)
• Steam Rating: 150 psi SWP
• Temperature Range: 0°F – 400°F
• Vacuum Service to 29 in. Hg
APPROVALS
• MSS-SP-110
• IAPMO/ANSI Z1157-2014e1
• CGA 3.16 (125 PSI)
• CGA CR91-002 (5 PSI)
• ANSI Z21.15/CSA 9.1 (1/2 PSI)
• ASME B16.44 (5 PSI)
• ASME B16.33 (125 PSI) (1/2” – 2”)
• FM 1140 (1/4” – 2”)
• UL Guides: YSDT, MHKZ, YQNZ, YRBX & YRPV
• UL Guide VQGU (1/4” – 2”)
OPTIONS
• (-01) Standard Lever
• (-04) 2-1/4” Stem Extension 1/4” – 2-1/2”
• (-07) Tee Handle 1/4” – 2”
• (-11) Therma-SealTM
Insulating Tee Handle 1/4” – 2”
• (-27) Locking Handle SS 1/4” – 2-1/2”
• (77F140 Series) – SS Ball & Stem
• (77FLF Series) Lead Free (0.25% Lead Max)
