Description
FLANGED “Y” STRAINERS
Steel / Stn. Stl. – 1500YFS Series
Series ‘1500YFS’

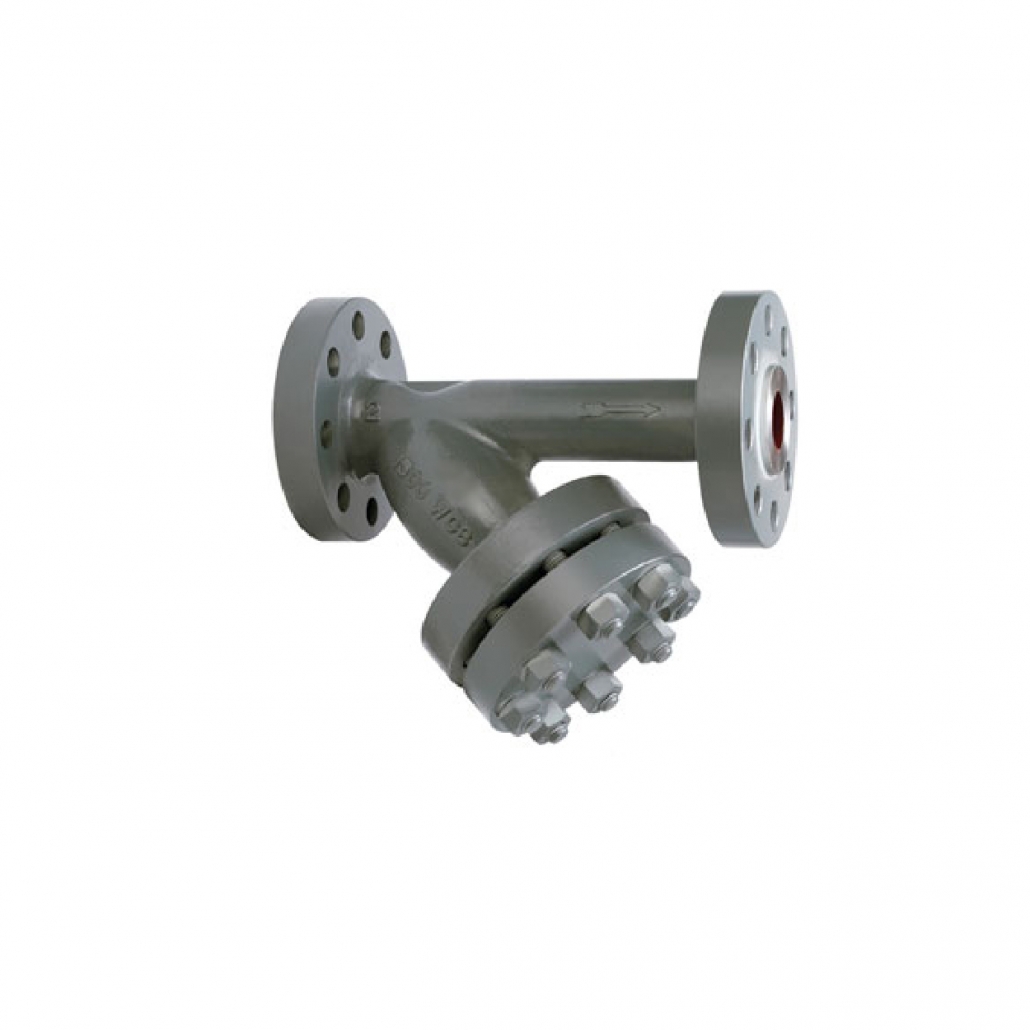

Class 1500 Flanged Cast Steel and Stainless Steel ‘Y’ Strainer
Available in sizes 2″ to 8″ with ANSI 1500# RF flanged connections for maximum operating pressures as follows:
Ratings:
Carbon Steel Body: 1500YFS
PMO: (Maximum Operating Pressure)
860 psig @ 900 deg. F.
3705 psig @ 100 deg. F.
Stainless Steel Body: 1500YFSS
PMO: (Maximum Operating Pressure)
1970 psig @ 900 deg. F.
3600 psig @ 100 deg. F.
Screens:
3/64″ perforated type 304 stainless steel are supplied as standard on sizes 2″ and 3″. 1/8″ perforated type 304 stainless steel are supplied as standard on sizes 4″ and larger. Other meshes, perforations and materials are available upon request.
Caps:
Blind flanged and gasketed caps are supplied as standard on all sizes. Plugged blowdown connections are optional on all sizes.
