Description

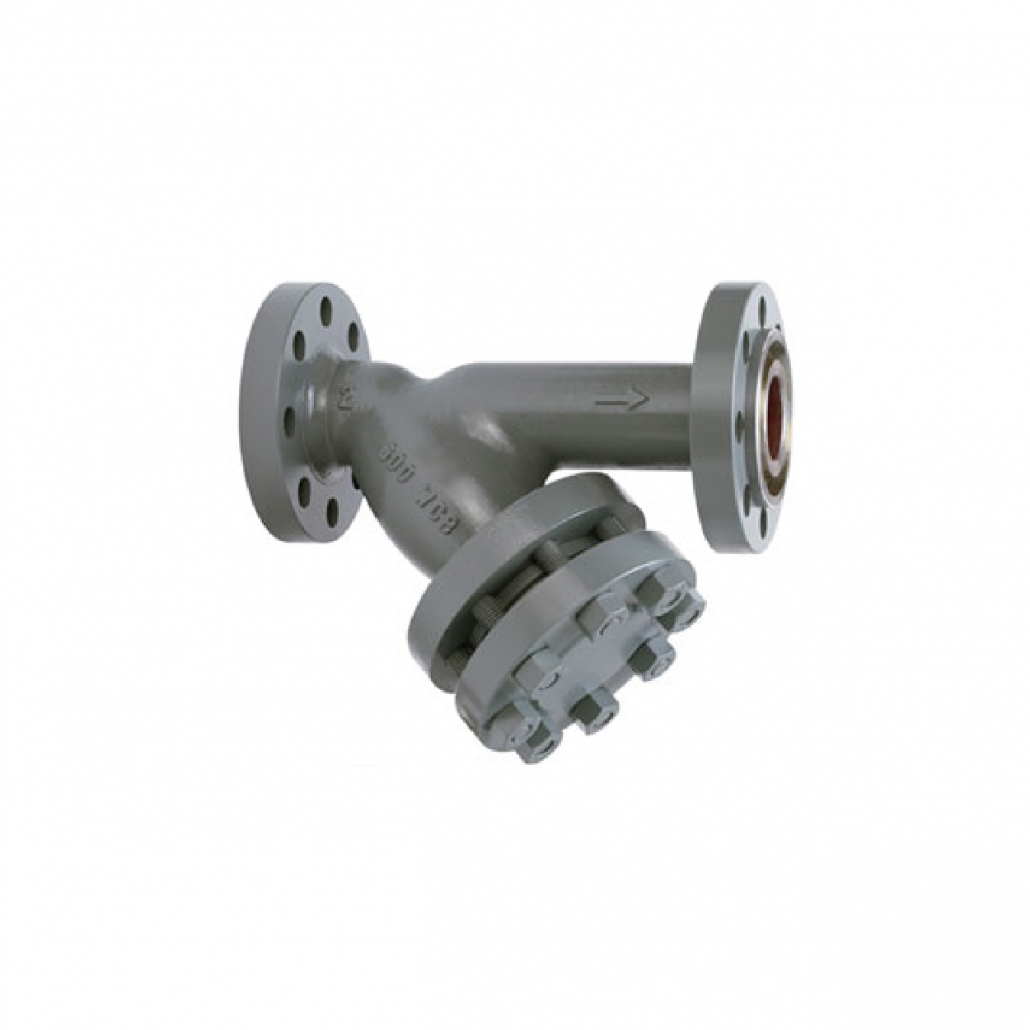

FLANGED “Y” STRAINERS
Steel / Stn. Stl. – 600YF Series
Series ‘600YF’
Class 600 Flanged Cast Steel and Stainless Steel ‘Y’ Strainer
Available in sizes 2″ to 12″ with ANSI 600# RF flanged connections for maximum operating pressures as follows:
Carbon Steel Body:
PMO: (Maximum Operating Pressure)
345 psig @ 900 deg. F.
1480 psig @ 100 deg. F.
Stainless Steel Body:
PMO: (Maximum Operating Pressure)
790 psig @ 900 deg. F.
1440 psig @ 100 deg. F.
Screens: 3/64″ perforated type 304 stainless steel are supplied as standard on sizes 2″ and 3″. 1/8″ perforated type 304 stainless steel are supplied as standard on sizes 4″ and larger. Other meshes, perforations and materials are available upon request.
Caps: Flanged and gasketed caps with plugged blow-off connections are supplied as standard on all sizes
