Description

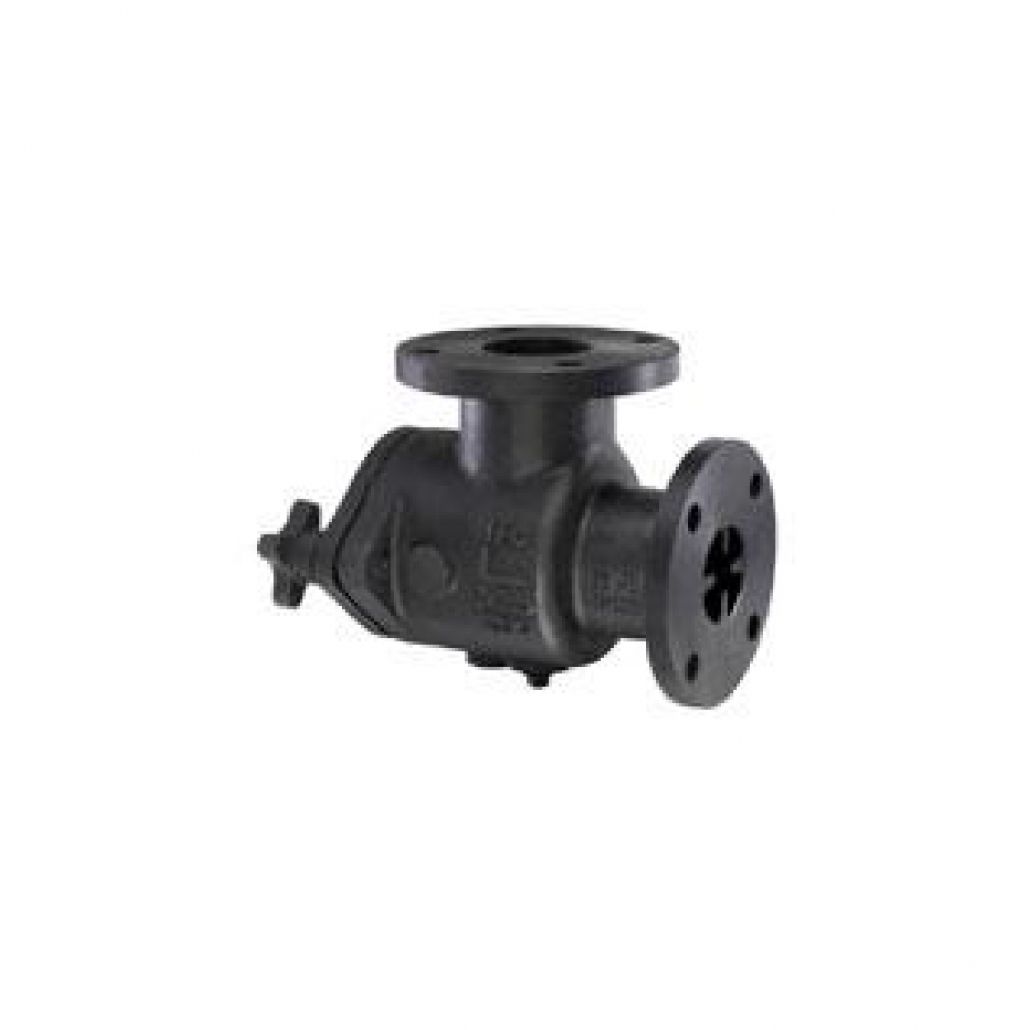

Model ‘125SDFI’ Suction Diffuser
FEATURES
● Designed for direct mounting to end suction of horizontal or vertical pumps.
● Saves Space – Eliminates the need for typical “Y” strainer and elbow into pump suction
● Integral straightening vanes reduce flow turbulence
● 125# flat face flanges in accordance with ASME B16.1
SCREENS
● 3/64″ perforated 304 stainless steel in sizes 2″ through 3″ and 1/8″ perforated 304 stainless steel in sizes 4″ through 12″.
● All units are supplied with a removable 20 mesh (0.032″ hole opening) liner for start-up.
● Optional perforations and screen materials are available upon request.
RATINGS
PMO: (maximum operating pressure) 200 psi @ 150ºF
Maximum Allowable Working Temperature:
212°F (Buna-N seal)
250°F (EPDM seal)
400°F (Viton seal)
