Description

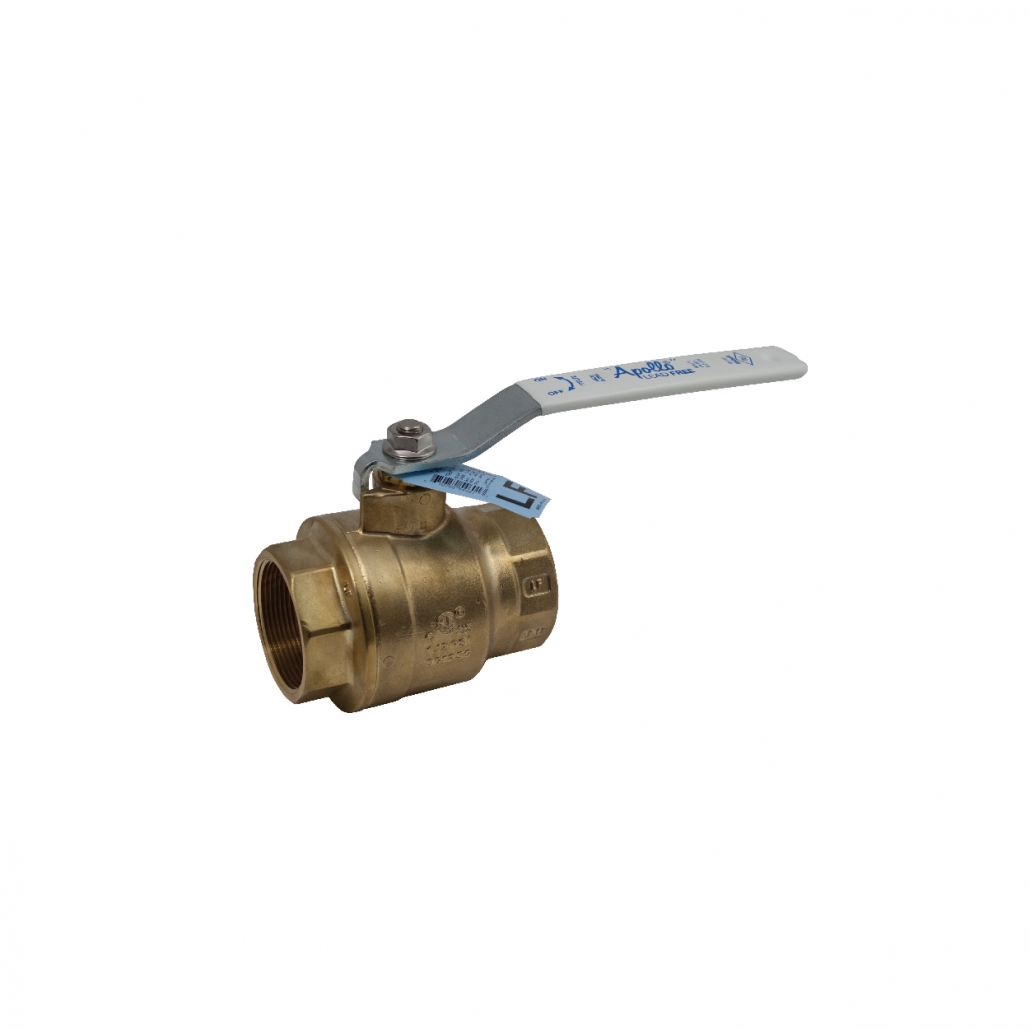

77FLF-100 Series
Full Port Threaded End Brass Ball Valve
LEAD FREE
DESCRIPTION
The Apollo 77FLF-100 Series is a lead free, full port forged brass ball valve suitable for a wide range of plumbing and heating applications, including potable
water. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly
Made in the USA
FEATURES
• Lead Free* Materials and Approvals
• Heavy Pattern Forged Design
• Full-Port Flow
• Superior RPTFE Seats and Packing
• Adjustable Stem Packing
• Blowout-Proof Stem
• 2-1/2” – 4” Sizes Now Feature 316SS Ball and Stem (Standard)
• Dezincification Resistant Materials
• 100% Factory Tested
• Silicone Free Assembly
• Made in USA, ARRA Compliant
PERFORMANCE RATING
• Rating: 600 CWP (1/4” – 2”)
• Rating: 400 CWP (2-1/2” – 4”)
• Steam Rating: 150 psi SWP
• Temperature Range: 0°F – 400°F
• Vacuum Service to 29 in. Hg
APPROVALS
• MSS SP-110
• IAPMO/ANSI Z1157
• NSF/ANSI/CAN 61 – Water Quality
• NSF/ANSI 372 – Lead Free
FM LISTED
• FM 1140 (<175 PSI) (1/4” – 2”)
CSA LISTED
• CGA 3.16 (125 PSI)
• CGA CR91-002 (5 PSI)
• ANSI Z21.15/CSA 9.1 (1/2 PSI)
• ASME B16.44 (5 PSI)
• ASME B16.33 (125 PSI) (1/2” – 2”)
UL LISTED
• UL 125 – Flow Control Valves for LP-Gas, Guide YSDT to 250 psi max
• UL 258 – Fire Protection Trim & Drain, Guide VQGU to 175psi max (1/4” – 2”)
• UL 842 – Valves for Flammable Fluids, Guides YRBX, YRPV, and MHKZ to
250 psi max. (1/4” – 4” NPT only)
• UL 1477 – Compressed Gas Shutoff Valves, Guide YQNZ to 250 psi max
(1/4” – 4” NPT only)
*Gas approvals apply to NPT models only
